Product-IFI114

 Structural Rivet >> KF-BOLT SERIES >> WK-BB71

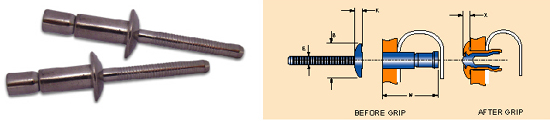

WK-BB71


MATERIAL
 BODY: 300 Stainless steel
 MANDREL: 300 Stainless steel
FINISH
BODY:  Natural
MANDREL:  Natural
Size Drill Part No. M Grip Range B K E X Shear Tensile PULL
OUT
max max max max max KN KN N
4.8
(3/16")
WK-BB71-4810 18.2 1.63-6.86 10.1 2.1 2.9 2.9 6 4.5 ≥ 445

WK-BB71-4814 24.4 1.63-11.10 10.1 2.1 2.9 2.9 6 4.5 ≥ 445

6.4
( 1/4 ")
WK-BB71-6414 23.7 2.03-9.53 13.3 2.9 3.9 3.7 10.5 8.2 ≥ 1112

WK-BB71-6419 32.9 2.03-15.87 13.3 2.9 3.9 3.7 10.5 8.2 ≥ 1112
