Product-IFI114

 Structural Rivet >> HEM-FIX >> WK-SS21

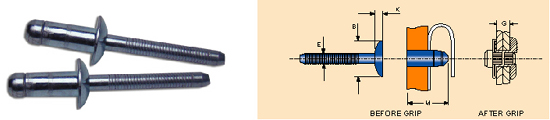

WK-SS21


MATERIAL
BODY:  1022
MANDREL:  1045
FINISH
BODY:  Zinc Plated
MANDREL:  Zinc Plated

Size

Drill

Part No.

M

Grip Range



B

K

E

Shear

Tensile

max

max

max

max

KN

KN

6.4

(1/4 ")

WK-SS21-0812

13.7

1.50-3.50

13.4

2.7

3.9 10.0 7.8





WK-SS21-0813

15.0

2.80-4.80

13.4

2.7

3.9 11.0 7.8





WK-SS21-0814

15.6

3.35-5.35

13.4

2.7

3.9 12.0 7.8





WK-SS21-0815

17.0

4.80-6.80

13.4

2.7

3.9 12.5 7.8





WK-SS21-0817

19.0

6.80-8.80

13.4

2.7

3.9 13.0 7.8





WK-SS21-0818

19.7

7.50-9.50

13.4

2.7

3.9 14.0 7.8





WK-SS21-0819

21.0

8.80-10.80

13.4

2.7

3.9 14.5 7.8





WK-SS21-0821

23.0

10.80-12.80

13.4

2.7

3.9 15.0 7.8
