Product-IFI114

 Structural Rivet >> MULTIGRIP >> WK-SS1624-Series

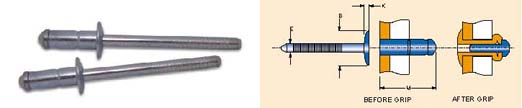

WK-SS1624-Series


MATERIAL
BODY:  Carbon Steel
MANDREL:  Carbon Steel
FINISH
BODY:  Zinc Plated
MANDREL:  Zinc Plated
Size Drill Part No. M Grip range B K E Shear Tensile
max max max max KN KN
3.2
(1/8")
WK-SS1624-0411 11.4 1.0-4.0 7.6 1.2 2.2 1.3 1.7

WK-SS1624-0414 14 3.7-6.6 7.6 1.2 2.2 1.3 1.7

4.0
(5/32")
WK-SS1624-0508 9.6 2.0-4.0 8.4 1.6 2.8 1.9 2.3

WK-SS1624-0514 13.7 1.4-5.0 8.4 1.6 2.8 1.9 2.3

4.8
(3/16")
WK-SS1624-0612 13.5 1.2-4.8 10.1 2.1 3.0 3.6 3.3

WK-SS1624-0616 15.7 4.0-6.3 10.1 2.1 3.0 4.5 3.4
