Product-DIN7337

 Open Type Blind Rivet >> NORMAL >> All Stainless Steel WK-BBK

All Stainless Steel WK-BBK
　

　

MATERIAL
BODY:   Stainless Steel
MANDREL:   Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished

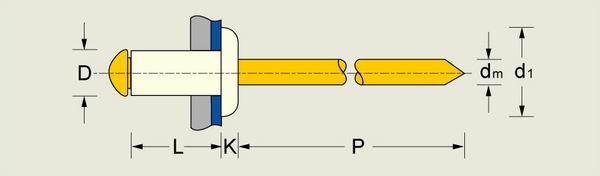

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.0
+0.08
-0.10		 WK-BBK 3006
WK-BBK 3008
WK-BBK 3010
WK-BBK 3012
WK-BBK 3015		 6.0
8.0
10.0
12.0
15.0		 1.0-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-12.0		 6.5
+0.0
-0.7		 0.80
±0.3		 3.1 27 1.95 1800 2200
3.2
+0.08
-0.10		 WK-BBK 3206
WK-BBK 3208
WK-BBK 3210
WK-BBK 3212
WK-BBK 3214
WK-BBK 3216		 6.0
8.0
10.0
12.0
14.0
16.0		 1.0-3.5
3.5-5.5
5.5-7.0
7.0-9.0
9.0-11.0
11.0-13.0		 6.5
+0.0
-0.7		 0.80
±0.3		 3.3 27 1.95 1900 2500
4.0
+0.08
-0.15		 WK-BBK 4006
WK-BBK 4008
WK-BBK 4010
WK-BBK 4012
WK-BBK 4014
WK-BBK 4016
WK-BBK 4018
WK-BBK 4020		 6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0		 1.0-2.5
2.5-4.5
4.5-6.5
6.5-8.5
8.5-10.0
10.0-12.0
12.0-14.0
14.0-16.0		 8.0
+0.0
-1.0		 1.0
±0.3		 4.1 27 2.42 2900 3650
WK-BBK 4025 25.0 16.0-21.0 L≥25mm, body made of sheet material
4.8
+0.08
-0.15		 WK-BBK 4808
WK-BBK 4810
WK-BBK 4812
WK-BBK 4814
WK-BBK 4816
WK-BBK 4818
WK-BBK 4820
WK-BBK 4822
WK-BBK 4825		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
25.0		 1.5-1.4
4.0-6.0
6.0-8.0
8.0-9.5
9.5-11.0
11.0-13.0
13.0-16.0
15.0-17.0
17.0-20.0		 9.5
+0.0
-1.0		 1.1
±0.4		 4.9 27 2.9 423 5340
　 WK-BBK 4830
WK-BBK 4835
WK-BBK 4840		 30.0
35.0
40.0		 20.0-25.0
25.0-30.0
30.0-35.0		 L≥30mm, body made of sheet material
5.0
+0.08
-0.15		 WK-BBK 5008
WK-BBK 5010
WK-BBK 5012
WK-BBK 5014
WK-BBK 5016
WK-BBK 5018
WK-BBK 5020
WK-BBK 5025		 8.0
10.0
12.0
14.0
16.0
18.0
20.0
25.0		 2.5-4.5
4.5-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0
16.0-20.0		 9.5
+0.0
-1.0		 2.5 5.1 27 2.9 4700 5800
WK-BBK 5030 30.0 20.0-25.0 L≥30mm, body made of sheet material
6.0
+0.08
-0.15		 WK-BBK 6010
WK-BBK 6012
WK-BBK 6015
WK-BBK 6018
WK-BBK6020		 10.0
12.0
15.0
18.0
20.0		 3.0-4.0
4.0-6.0
6.0-9.0
9.0-12.0
10.0-14.0		 12
+0.0
-1.5		 1.5
±0.4		 6.1 31 3.85 5700 7500
WK-BBK 6025
WK-BBK 6030		 25.0
30.0		 14.0-19.0
19.0-24.0		 L≥25mm, body made of sheet material
6.4
+0.08
-0.15		 WK-BBK 6412
WK-BBK 6415
WK-BBK 6418
WK-BBK 6420		 12.0
15.0
18.0
20.0		 4.0-6.0
6.-9.0
9.0-12.0
12.0-14.0		 13
+0.0
-1.5		 1.8
±0.4		 6.5 31 3.85 7570 9350
WK-BBK 6425
WK-BBK 6428
WK-BBK 6430		 25.0
28.0
30.0		 14.0-19.0
19.0-22.0
22.0-24.0		 L≥25mm, body made of sheet material
　
