Product-DIN7337

 Open Type Blind Rivet >> NORMAL >> Copper/Steel WK-CSK

Copper/Steel WK-CSK
　

　

MATERIAL
BODY:   Copper
MANDREL:   Steel		 FINISH
BODY:   Polished
MANDREL:   Zinc Plated

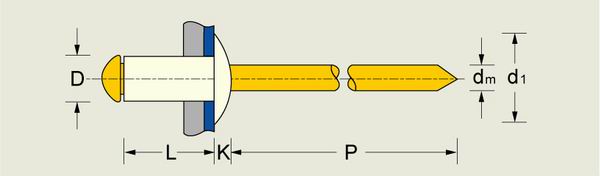

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.0
+0.08
-0.10		 WK-CSK 3006
WK-CSK 3008
WK-CSK 3010
WK-CSK 3012		 6.0
8.0
10.0
12.0		 1.0-3.0
3.0-5.0
5.0-7.0
7.0-9.0		 6.5
+0.0
-0.7		 0.80
±0.2		 3.1 27 1.8 700 800
3.2
+0.08
-0.10		 WK-CSK 3206
WK-CSK 3208
WK-CSK 3210
WK-CSK 3212		 6.0
8.0
10.0
12.0		 1.0-3.0
3.0-5.0
5.0-7.0
7.0-9.0		 6.5
+0.0
-0.7		 0.80
±0.3		 3.3 27 1.8 800 900
4.0
+0.08
-0.15		 WK-CSK 4006
WK-CSK 4008
WK-CSK 4010
WK-CSK 4012
WK-CSK 4014
WK-CSK 4016		 6.0
8.0
10.0
12.0
14.0
16.0		 1.0-2.5
2.5-4.5
4.5-6.5
6.5-8.5
8.5-10.0
10.0-12.5		 8.0
+0.0
-1.0		 1.0
±0.4		 4.1 27 2.2 1000 1500
4.8
+0.08
-0.15		 WK-CSK 4808
WK-CSK 4810
WK-CSK 4812
WK-CSK 4814
WK-CSK 4816
WK-CSK 4818
WK-CSK 4820		 8.0
10.0
12.0
14.0
16.0
18.0
20.0		 2.5-4.0
4.0-6.0
6.0-8.0
8.0-10.0
10.0-12.0
12.0-14.0
14.0-16.0		 9.5
+0.0
-1.0		 1.1
±0.4		 4.9 27 27 1500 2000
　
