Product-DIN7337

 Closed Type Blind Rivet >> NORMAL >> Copper/Stainless Steel WK-CBF

WK-CBF
　

　

MATERIAL
BODY:   Copper
MANDREL:   Stainless Steel		 FINISH
BODY:   Polished
MANDREL:   Polished

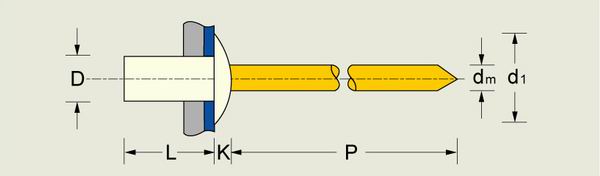

D Art. Code L
[+1/-0.2]		 Grip Range d1 K Drill
Φ		 P
Min.

dm
Ref.

Shear
N

Tensile
N

3.2
+0.08
-0.10		 WK-CBF 320065
WK-CBF 320080
WK-CBF 320095
WK-CBF 320125		 6.5
8.0
9.5
12.5		 0.5-2.0
2.0-3.5
3.5-5.0
5.0-8.0		 6.5
+0.2
-0.7		 1.3 3.3 27 1.7 980 1340
4.0
+0.08
-0.15		 WK-CBF 400080
WK-CBF 400100
WK-CBF 400120
WK-CBF 400150		 8.0
10.0
12.0
15.0		 0.5-3.0
3.0-5.0
5.0-6.5
6.5-10.0		 8.0
+0.4
-1.0		 1.7 4.1 27 2.2 1350 2000
4.8
+0.08
-0.15		 WK-CBF 480095
WK-CBF 480115
WK-CBF 480125
WK-CBF 480150		 9.5
11.5
12.5
15.0		 1.0-5.0
5.0-6.5
5.0-7.5
7.5-10.0		 9.5
+0.6
-1.0		 2.0 4.9 27 2.65 1950 2800
　
