Product-DIN7337

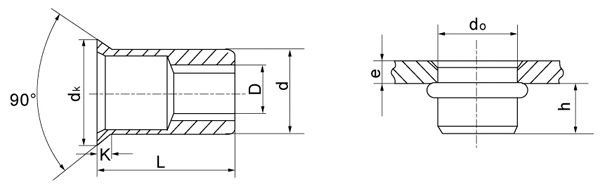

 RIVET NUT >> CSK Head WK-CTR



SIZE D Grip Range
e
h
Ref.
d0
+0.15
-0.05
d
+0.03
-0.20
dk
±0.30

K
±0.20

L
±0.30

WK-CTR-M3 M3 1.6-3.5 4.5 5 5 7 0.8 8.8
WK-CTR-M4 M4 1.6-3.5 6.0 6 6 9 0.8 10.8
WK-CTR-M5 M5 1.6-4.0 8.5 7 7 10 1.0 13.0
WK-CTR-M6 M6 1.6-4.5 9.0 9 9 13 1.5 15.0
WK-CTR-M8 M8 1.6-5.0 10.0 11 11 15 1.5 18.0
WK-CTR-M10 M10 1.6-5.0 11.5 13 13 17 1.8 20.3
WK-CTR-M12 M12 1.6-5.0 14.5 15 15 19 1.8 24.3
