Product-DIN7337

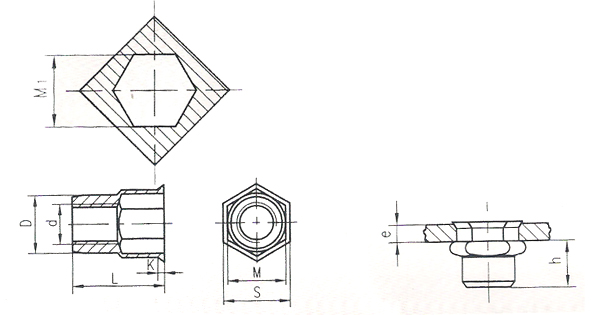

 RIVET NUT >> Thin Head Half Hex WK-XBL



SIZE D Grip Range
e
h
Ref.
d0
+0.15
-0.05
d
+0.03
-0.20
dk
±0.30

K
±0.20

L
±0.30

WK-XBL-M4 M4 0.5-2.0 6.5 6 6 6.75 0.5 10.0
WK-XBL-M5 M5 0.5-2.5 8.0 7 7 8.0 0.6 12.0
WK-XBL-M6 M6 0.5-3.0 9.5 9 9 10.0 .6 14.5
WK-XBL-M8 M8 0.5-3.5 10.0 11 11 12.3 0.6 16.5
WK-XBL-M10 M10 0.5-3.5 12.5 13 13 14.5 0.85 19.0
